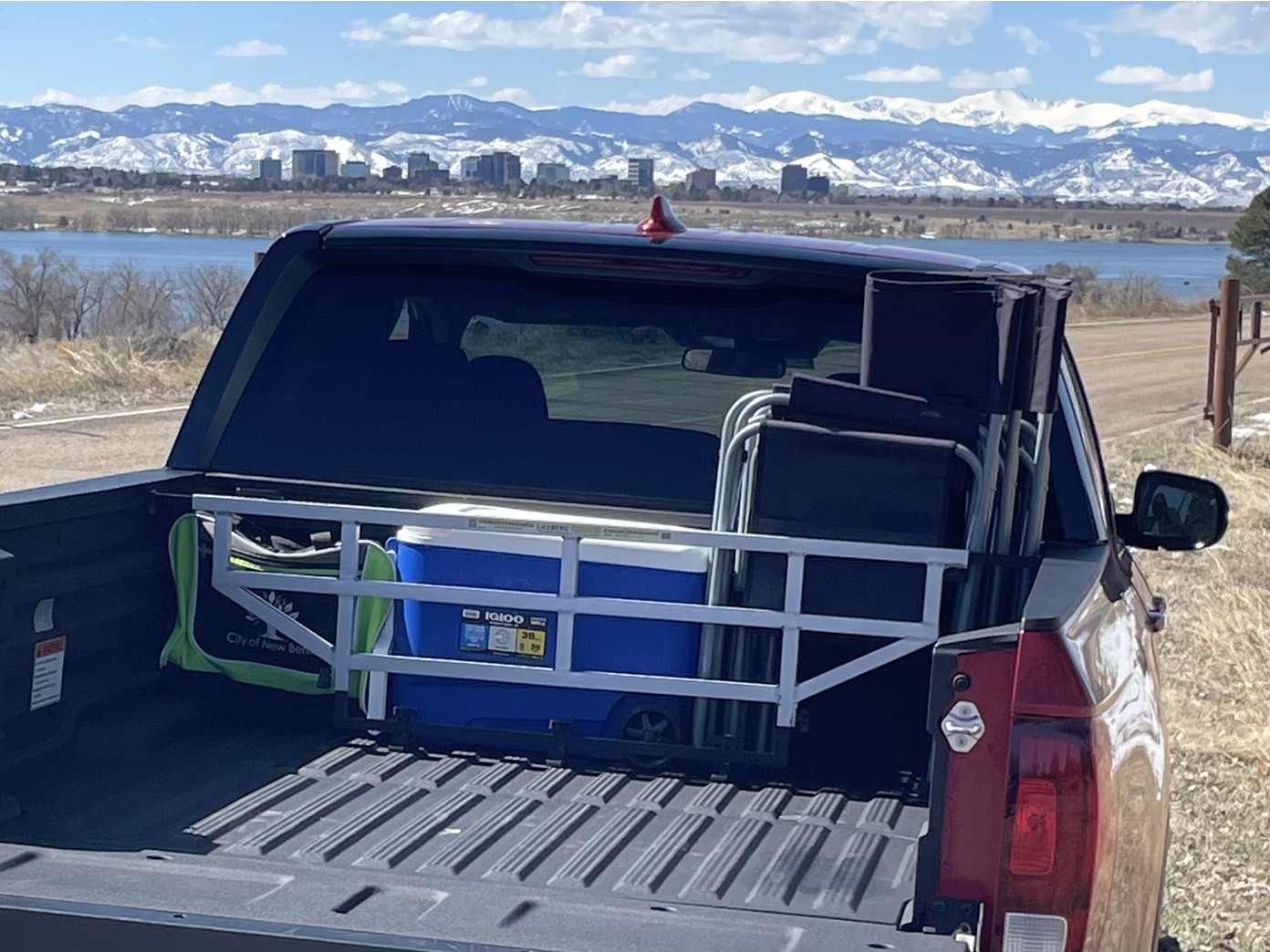

  • Truck bed with camping gear: cooler, chairs, and bag. Scenic view with mountains and water in the background.

    Slide title

    Write your caption here
    Button

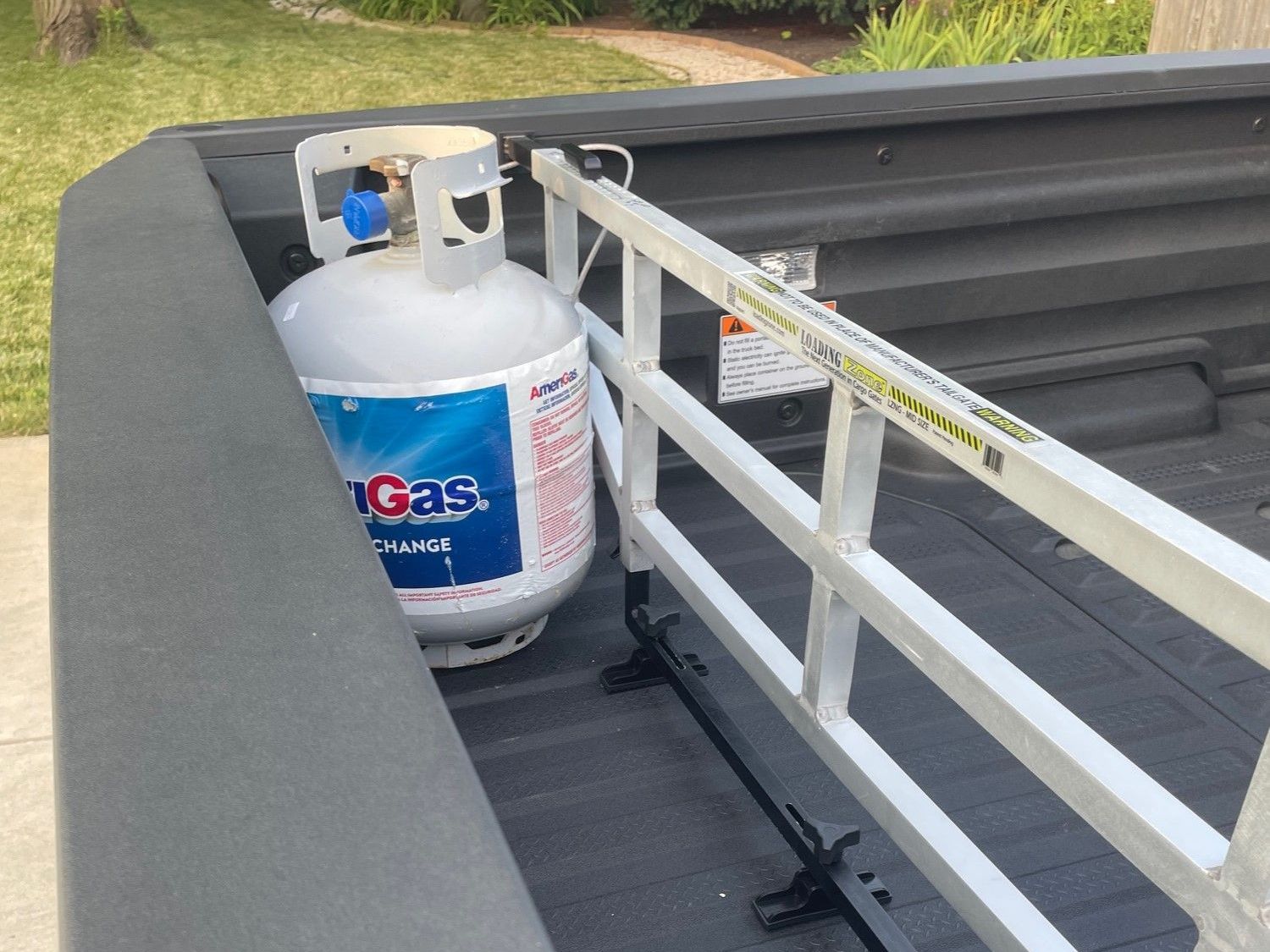

  • Propane tank secured in a black truck bed behind a white cargo divider.

    Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

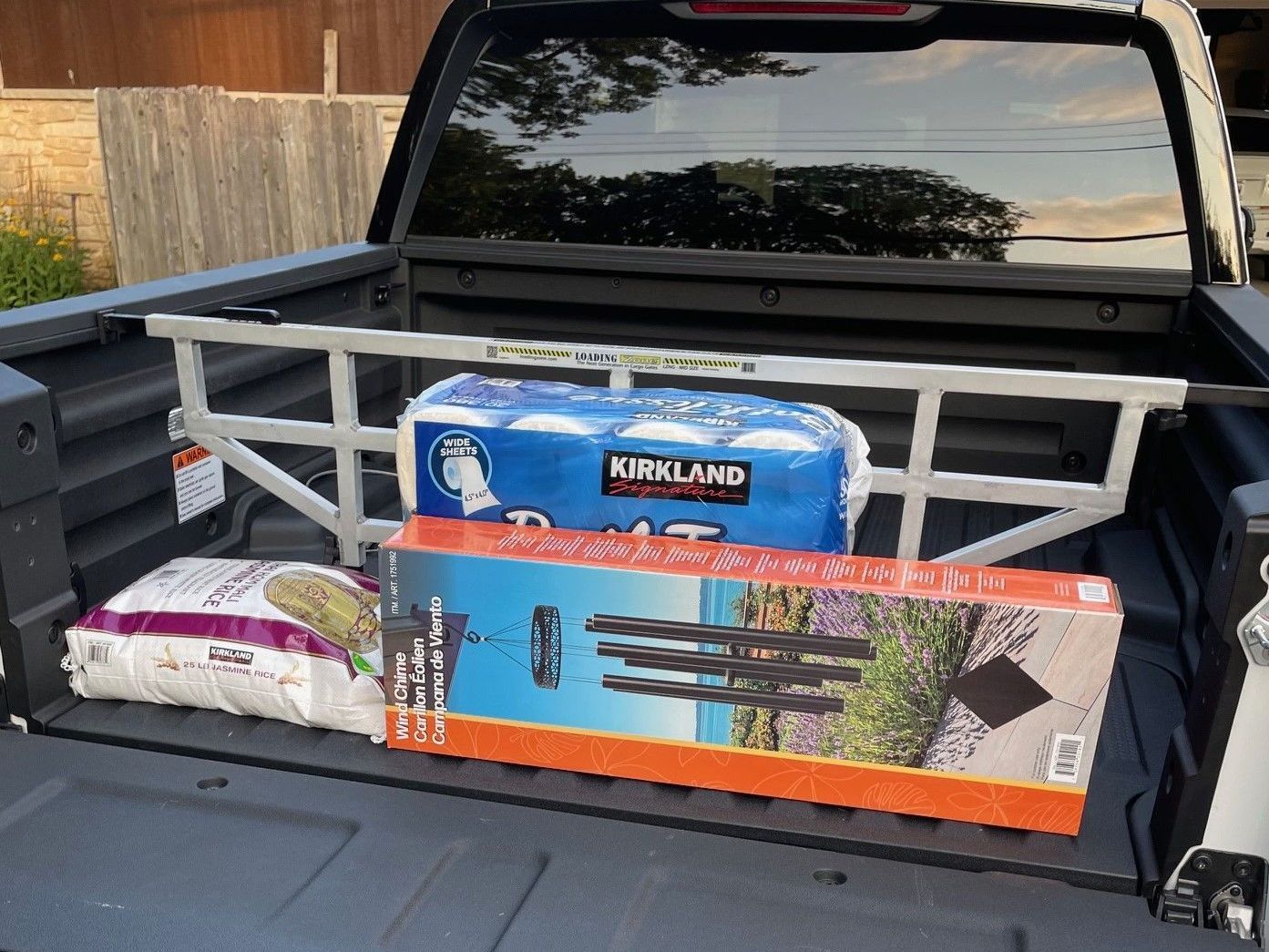

  • Truck bed with a cargo divider holding groceries, including toilet paper and a tripod box.

    Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

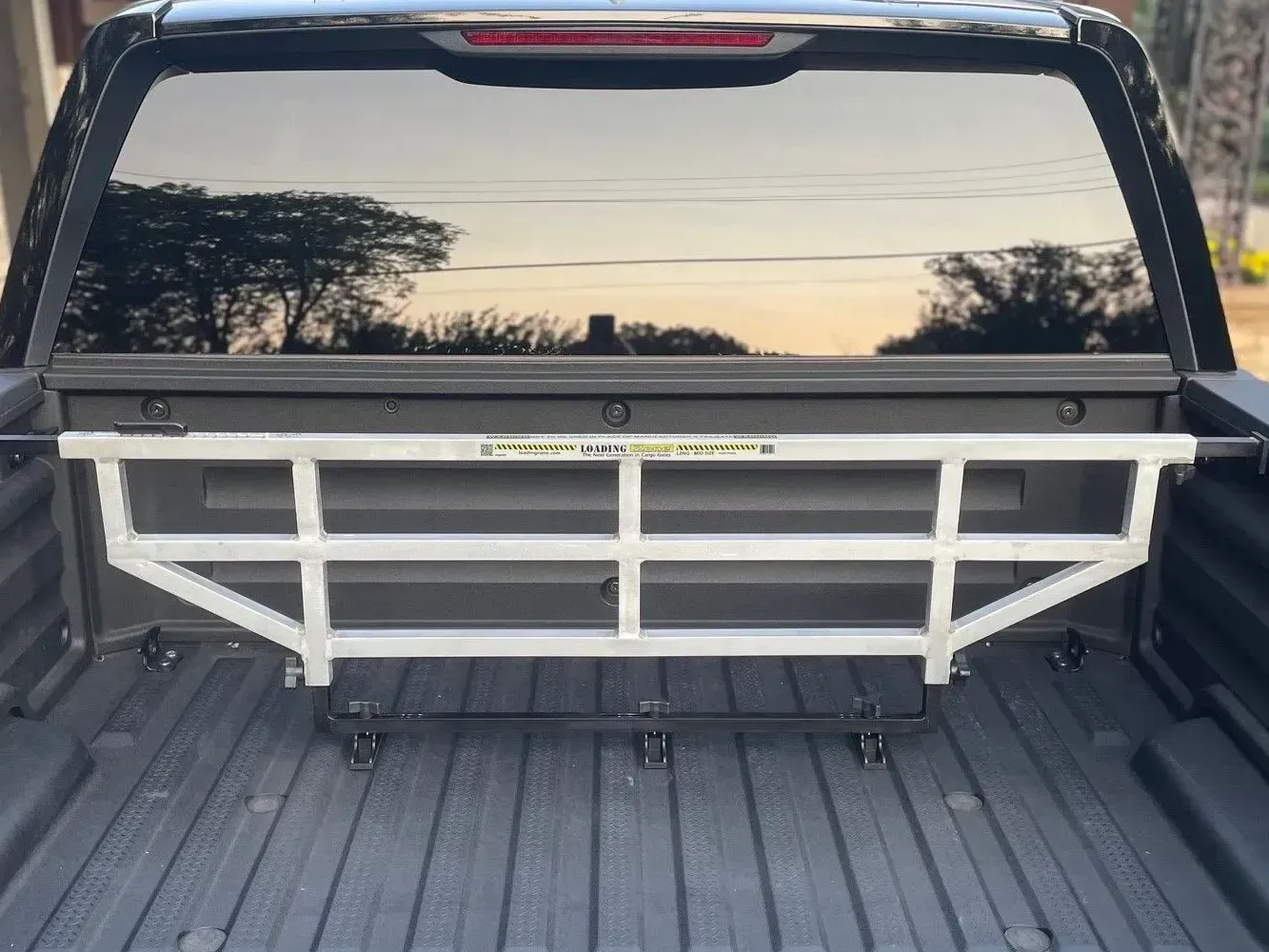

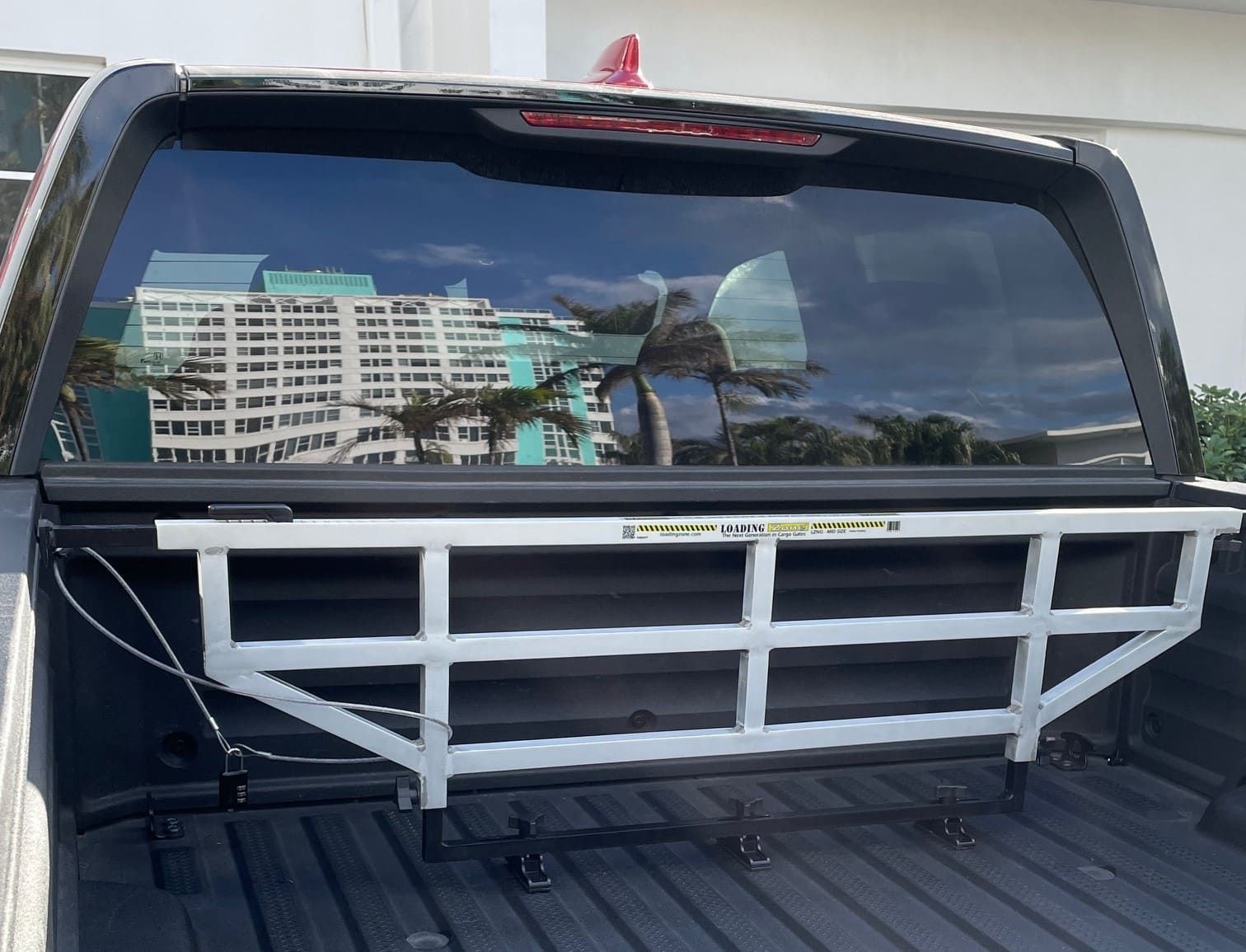

  • White truck bed rack installed against the rear window of a black truck.

    Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

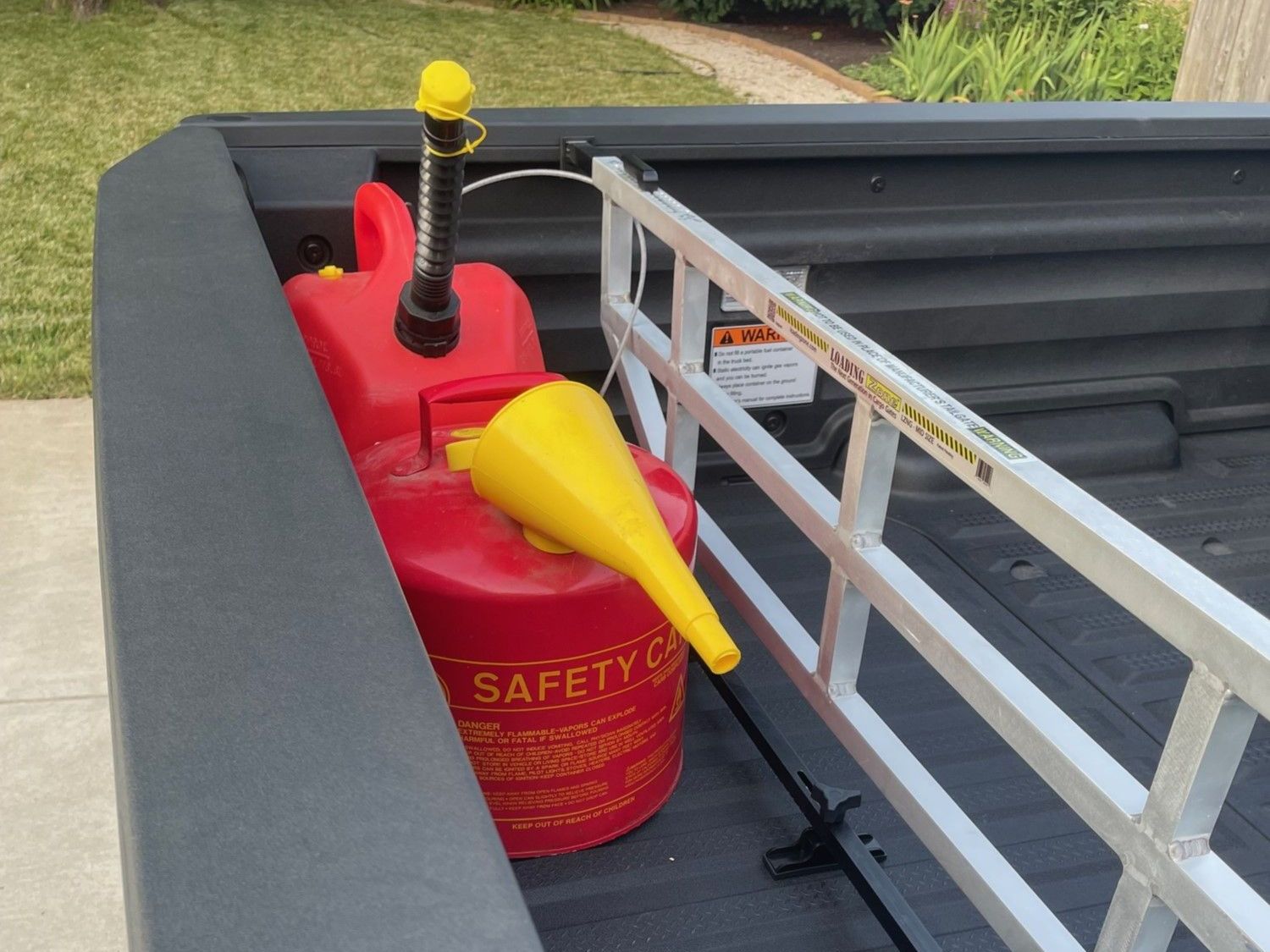

  • Red gas can and yellow funnel in the bed of a pickup truck, next to a metal bed divider.

    Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

The Next Generation in Truck Bed Dividers

Vertical stripes in varying shades of olive green.
Truck bed divider instructions: Lift, lock, and load. Includes photos of divider use, and a person using the divider.

LZNG Full-Size Truck Bed Divider


Dimensional Extents

Minimum Width: 61 - 1/4”

Maximum Width: 74 - 1/2”

Range: 13 - 1/4”


Minimum Height: 18 - 1/2”

Maximum Height: 24 - 1/4”

Range: 5 - 3/4”


Full-Size Truck List

Chevrolet Avalanche
Chevrolet C/K 1500, 2500, 3500

Chevrolet Silverado 1500, 2500HD, 3500HD, EV

Dodge Ram 1500, 2500, 3500, REV

Dodge Ram Classic

Ford F-150, F-250, F-350
GMC C/K 1500, 2500, 3500
GMC Hummer EV, H2 SUT

GMC Sierra 1500, 2500HD, 3500HD, EV

Lincoln Mark LT
Nissan Titan
Ram 1500, 2500, 3500

Toyota Tundra


LZNG  Mid-Size Truck Bed Divider


Dimensional Extents

Minimum Width: 53 - 1/2”

Maximum Width: 65 - 1/2”

Range: 12”


Minimum Height: 15”

Maximum Height: 20”

Range: 5”


Mid-Size Truck List

Chevrolet Colorado

Chevrolet S10

Dodge Dakota

Ford Maverick
Ford Ranger

GMC Canyon

GMC Sonoma

Honda Ridgeline

Hyundai Santa Cruz

Jeep Comanche
Jeep Gladiator

Mazda B-Series
Mitsubishi Raider
Nissan Frontier

Toyota Tacoma


Vertical stripes in varying shades of olive green.

Many Uses

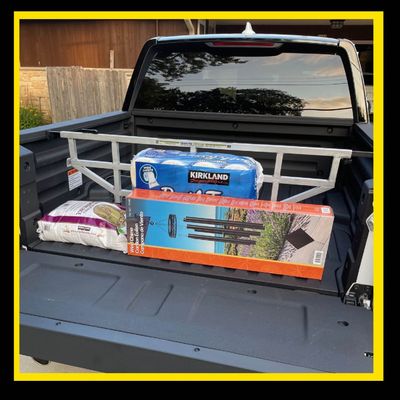

Truck bed with groceries and a bed extender.

Home

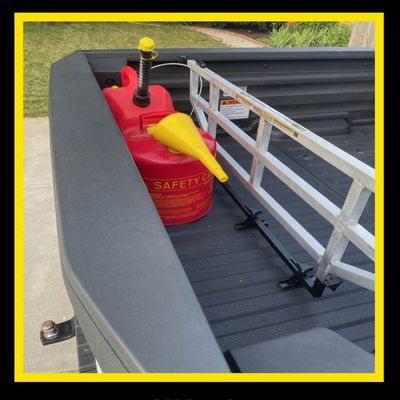

Red gas can with yellow funnel in truck bed, beside a white cargo divider.

Work

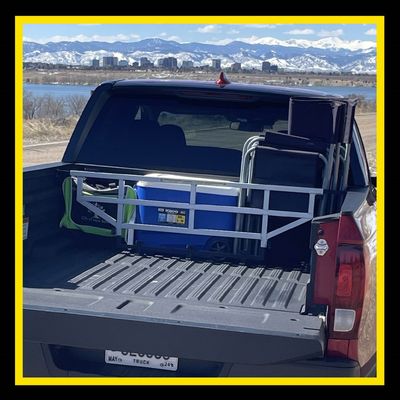

Truck bed with cargo. White metal frame, blue cooler, chairs, and gear. Background has water and mountains.

Play

Vertical yellow and black stripes.
Vertical stripes in varying shades of olive green.
Vertical yellow and black stripes.

New Design Features

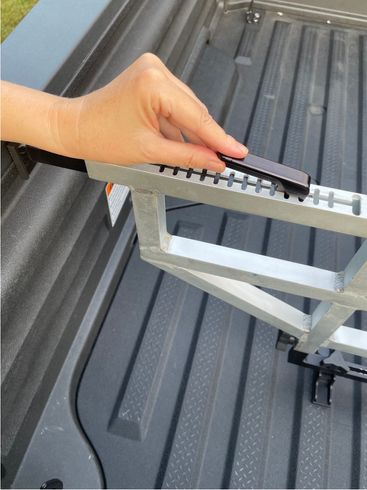

Patented Cam Lock Key makes installing your gate simple and secure.



Hand placing a black object on a metal truck bed rack, set inside a gray truck bed.

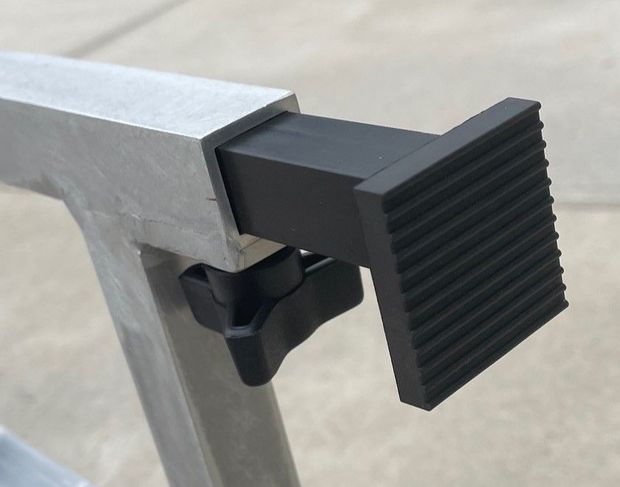

Custom molded rubber boots protect all contact points with the sidewall of your truck.



Black rubber foot attached to a silver metal sawhorse with a black knob.

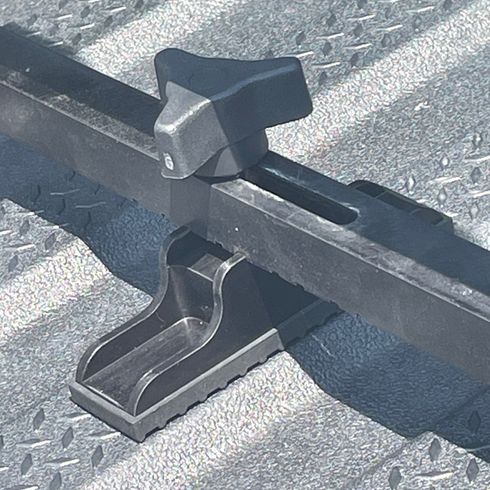

Machined aluminum feet fitted with custom molded rubber boots provide a strong and secure connection to your truck bed


Black truck bed cargo organizer with adjustment knob.
Vertical stripes in varying shades of olive green.

  • Does the divider fit into a GMC 1500 Denali with a Carbon Fiber bed

    Typically you will clamp the divider to the truck's top bed rail.  You can also clamp to the bed’s sidewall as long as it's rigid enough to clamp into, if that is your plan. Not a problem for the feet on the bed’s floor

  • DA does this fit a 2025 Honda ridgeline

    Yes, our Mid Size truck bed divider fits in the 2021-2026 Ridgeline.

  • Will it fit on a truck with tonneau cover

    Both bed dividers will work with all top mounted tonneau covers. You just needs 1/2” clearance above the top of the divider’s main frame for the cam lock. If your tonneau cover clamps to the top rail of you truck bed the divider can mount below that and clamp to the sidewall of the truck bed. Please view the dimensional extents of our bed dividers for proper fitmet.

  • I have a new 2026 F-250 with a LineX retractable tonneau cover. Which bed divider do I need?

    You would need to attach our Full-size Bed Divider below tonneau cover and clamp to the sidewall of your truck bed.  Please view the dimensional extents of our bed dividers for proper fitmet.

  • Will this work with a Sierra 1500 with a BAK Revolver Tonneau cover installed?

    Looks like the rails for the cover are in line with truck bed’s top rail so our divider would need to be mounted below that and clamp into the sidewall of your bed. You would need our Full-size bed divider.  Please view the dimensional extents of our bed dividers for proper fitmet.

  • Will you product work with a truck with a hard tri-fold cover

    The tri-fold tonneau covers are typically mounted above the top rail of your truck bed so our divider should be able to clamp to the top rail. You need about 1/2” clearance from the cover for the cam lock.  Please view the dimensional extents of our bed dividers for proper fitmet.

  • Will the divider work with a 2024 Nissan Titan that has the util track and a tonneau cover?

    Our Full-size bed divider should work with the util track system. Most top mounted tonneau covers you all you to clampinto the top rail of the bed.   If your tonneau cover uses the top rail it is possible to clamp the divider to the side wall of the truck bed.   Please view the dimensional extents of our bed dividers for proper fitmet.

  • Does it fit a 2020 GMC Denali 3500

    Yes, the Denali would use our Full-size bed divider.

  • How does it attach?

    Please go to our support page for installation instruction. www.loadingzone.com/support

  • Will this fit in a 2025 ram 500 5‘7“ bed with a rail tiedown system?

    Yes, our Full Size truck bed divider should fit in the 2025 Ram with the rail tiedown. You can also clamp to the sidewall of the truck bed below the top rail.

  • Will this divider work on a short bed 2019 Toyota Tacoma with a camper shell and drop in bed liner?

    It depends on if the top rail of the truck bed is accessible to clamp the side extensions to. But depending on the thickness of the drop in bed liner it may not work.

  • Will the bed divider still work with a truck bed rug installed in the bed of the truck?

    Most likely yes as long as it’s secured to the truck bed floor.

  • I have a 2025 Tacoma with the factory bed rails. Does this mount below the bed rails?

    Unfortunately the mid-size bed divider is not small enough to mount below the bed rails on the Tacoma.

Loading Zone's Original Cargo Gate

Since 2003 our "Original" cargo gate has been a mainstay of cargo management products.

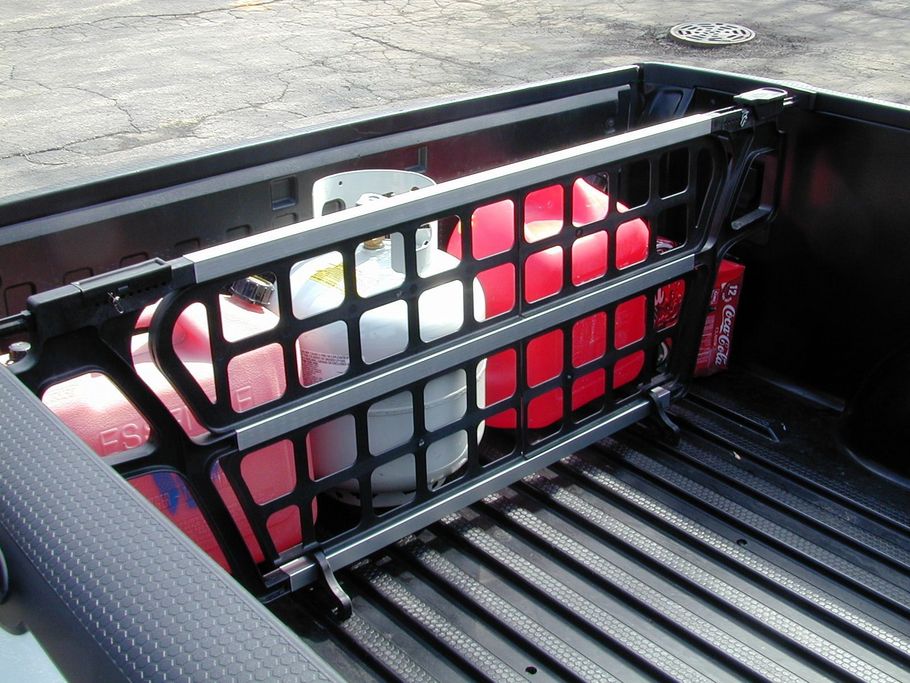

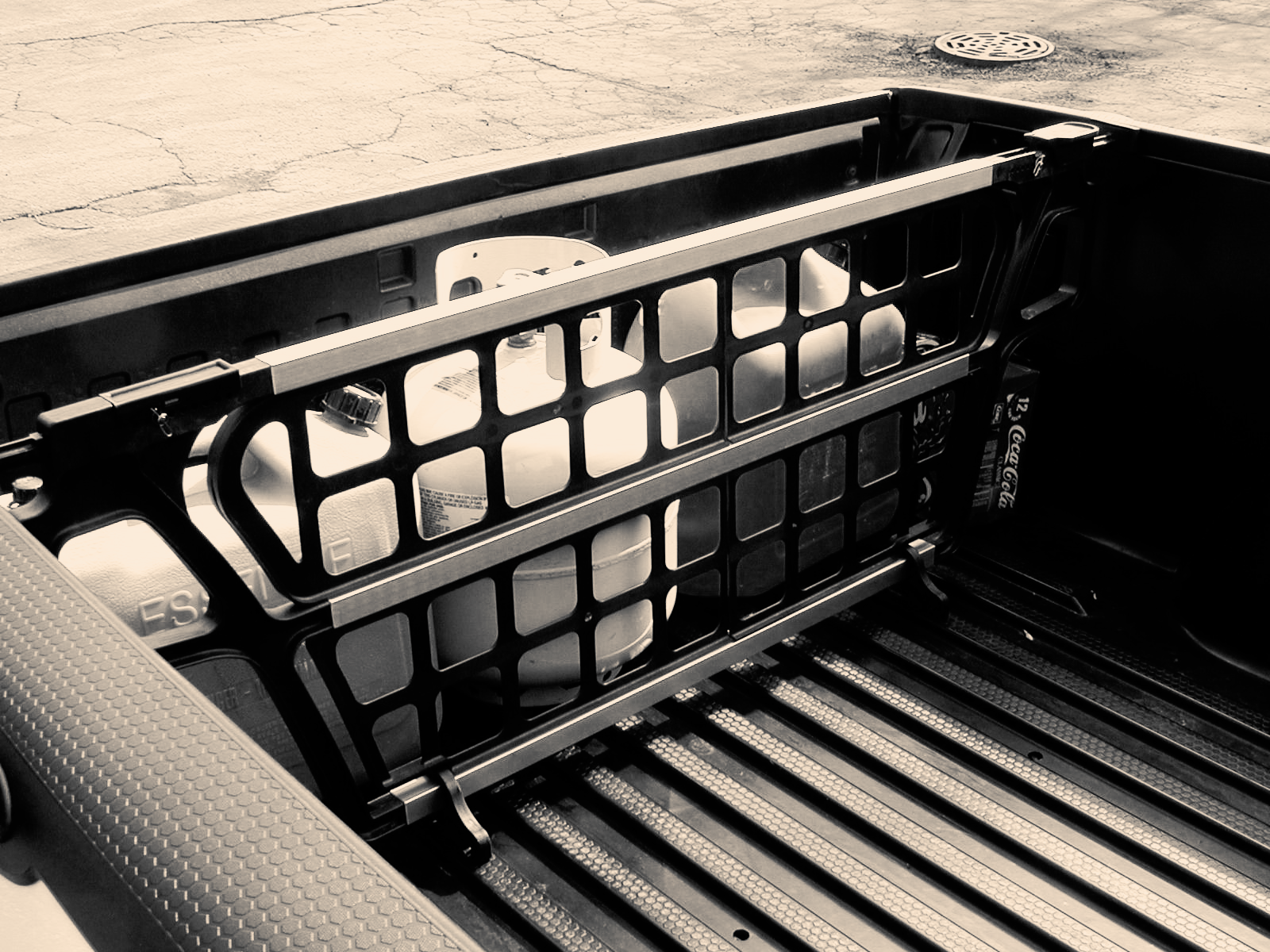

Black truck bed cargo divider holding a propane tank and gas cans.

Our "Next Generation"  in truck bed dividers is an all aluminum frame with solid aluminum extension components, powder coated and fitted with custom molded rubber boots at all contact points.


We listened to our customer's comments and feedback over the years and have created a domestically designed and manufactured product.  Proudly built in the USA. It will transform the way you can use your truck bed.
